- level of protection - IP 41
- rated voltage 380 V
- number of terminals - 4x2.5 mm2 (or without terminals)
- number of outlets - 4
- diameter 80 mm, height 36 mm
Catalogue
Pak-Plast.pdf (13 MB)
Socket-outlet insulating P1
|
- on-plaster box - level of protection - IP 41 - rated voltage 380 V - number of terminals - 4x2.5 mm2 (or without terminals) - number of outlets - 4 - diameter 80 mm, height 36 mm |
Socket-outlet insulating P3
 |
- on-plaster box - level of protection - IP 41 - rated voltage 380 V - number of outlets - 4 - adapted to branching plates: 4x10 mm2 or 5x10 mm2 - adapted to pipes: Ø13, Ø16, Ø18, Ø22 mm - dimensions: 110x110x50 mm |
Socket-outlet insulating P4
 |
- on-plaster box - level of protection - IP 20 - rated voltage 380 V - number of outlets - 2 - adapted to conduits: 17x15 mm, 32x10 mm - number of terminals: 5x2.5 mm2 (or withaut terminals) - dimensions: 90x80x25 mm |
Socket-outlet insulating P6
Original solution permitting to use different replaceable connectors in the same base:
 |
- number of outlets - 4 - rated voltage 380 V - level of protection - IP 41 - rigid connectors for conduits: 25x40, 32x15, 20x12, 17x15, 17x10 mm - dimensions: 130x130x50 mm |
 |
- number of outlets - 4 - rated voltage 380 V - level of protection - IP 41 - rigid connectors for pipes diameter 37 mm, 28 mm - dimensions: 130x130x50 mm |
 |
- number of outlets - 4 - rated voltage 380 V - level of protection - IP 41 - soft chokes for pipes diameter: 13, 18, 22, 25 mm - dimensions: 130x130x50 mm |
 |
- number of outlets - 4 - rated voltage 380 V - level of protection - IP 41 - soft chokes for wires max 5x10 mm2 - dimensions: 130x130x50 mm |
Socket-outlet insulating Poh
 |
- on-plaster box - level of protection - IP 20 - rated voltage 380 V - number of outlets - 4 - connectors for insulation pipes diameter: 28,37,47 mm - adapted to branching plates 4x16mm2 or 5x16mm2 - dimensions: Poh 28 and 37: Ø160mm, height 60mm Poh 47: Ø185mm, height 70mm |
Socket-outlet insulating P7
 |
- dimensions 87x87 mm, height 45 mm - rated voltage 380 V - soft chokes for pipes max. Ø18 mm - level of protection IP 44 - soft chokes for pipes - possibility to install branching plates: 4x2.5 mm2, 4x4 mm2, 5x2.5 mm2, 5x4 mm2 - press-on lid |
 |
- dimensions 87x87 mm, height 45 mm - rated voltage 380 V - soft chokes for pipes max. Ø18 mm - level of protection IP 55 - with shock proof polymer cable glands - possible to install branching plates: 4x2.5 mm2, 4x4 mm2, 5x2.5 mm2, 5x4 mm2 - press-on lid |
P8
 |
- electric insulation box with lid - number of outlets - 8 - dimensions: 93x93x45 mm |
Socket-outlet insulating PK-2
 |
- on-plaster box - level of protection: IP 41 - rated voltage 380 V - number of outlets: 4 - adapted to pipes: Ø13, Ø16, Ø18, Ø22mm - dimensions: 100x100x61 mm |
Boxes for plaster board walls
 |
Ø 60 - metal or plastic catches - number of outlets - 4 - height 44 mm |
 |
Ø 70, 80 - metal or plastic catches - with lid - number of outlets - 4 - height 44 mm - diameter: 70 mm, height: 40 mm - diameter: 80 mm, height: 44 mm |
 |
2xØ60 - metal or plastic catches - dimensions: 140x60x44 mm 3xØ60 |
Mounting boxes
 |
Box with "flange" Ø60 - final electric box - with (or without) screw - height 44 mm |
 |
"Simple" box Ø60 - height 40 mm
|
 |
"Simple" box Ø70 - with lid - height 38 mm |
 |
Box with "flange" Ø70 - with lid - height 38 mm |
 |
Box Ø80 - with lid - height 44 mm
|
 |
Under - plaster boxes for joining in series
Ø60 shallow box - depth h=43 mm - number of outlets - 5 deepen box - depth h=63 mm - number of outlets - 7 New, more reliable directions of connection - vertical latch |
 |
Multiple under - plaster boxes double box - with screw - diameter: 2xØ60 - dimensions: 140x60x44 mm threefold box - with screw - diameter: 3xØ60 - dimensions: 205x60x44 mm
|
Mounting cover PM Ø60
 |
- a replaceable protection part of the box during construction work |
Branching plates
 |
4x2.5 mm2 5x2.5 mm2 380 V |
 |
4x6 mm2 5x6 mm2 4x10 mm2 5x10 mm2 380 V |
|
 |
4x4 mm2 5x4 mm2 380 V |
 |
4x16 mm2 5x16 mm2 380 V |
Socket - outlet Lz-O, T55, 25x10 mm2
 |
- rated voltage: 750 V - 5 x 25 x10 mm2 - fixing directly on the every base or the electrical "splint" |
Socket - outlet Lz-O, T55, 35x16 mm2
 |
- rated voltage: 750 V - 5 x 35x16 mm2 - fixing directly on the basis or the console TS 35 - with transparent cover |

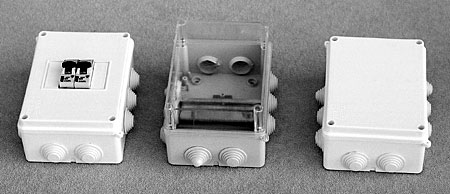

"Prima-Pak"series
 |
||
| P11 "PRIMA" IP20 the console TS 35 with terminal 158x115x73 |
P10 "PRIMA" IP55 the console TS 35 with terminal 158x115x95 |
P9 "PRIMA" IP55 without terminal 158x115x73 |
Distribution boards
 |
 |
 |
| 1-phase distribution board, T-1F-7s - rated voltage: 220/380 V - level of protection IP 20 - rated current - 25 A - max. wire cross-section: 10 mm2 |

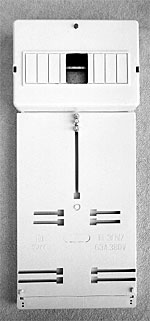

3-phase distribution board, T-3F-9s - rated voltage: 220/380 V - level of protection IP 20 - rated current - 63 A - max. wire cross-section: 10 mm2
|
T-1F-b/z |
